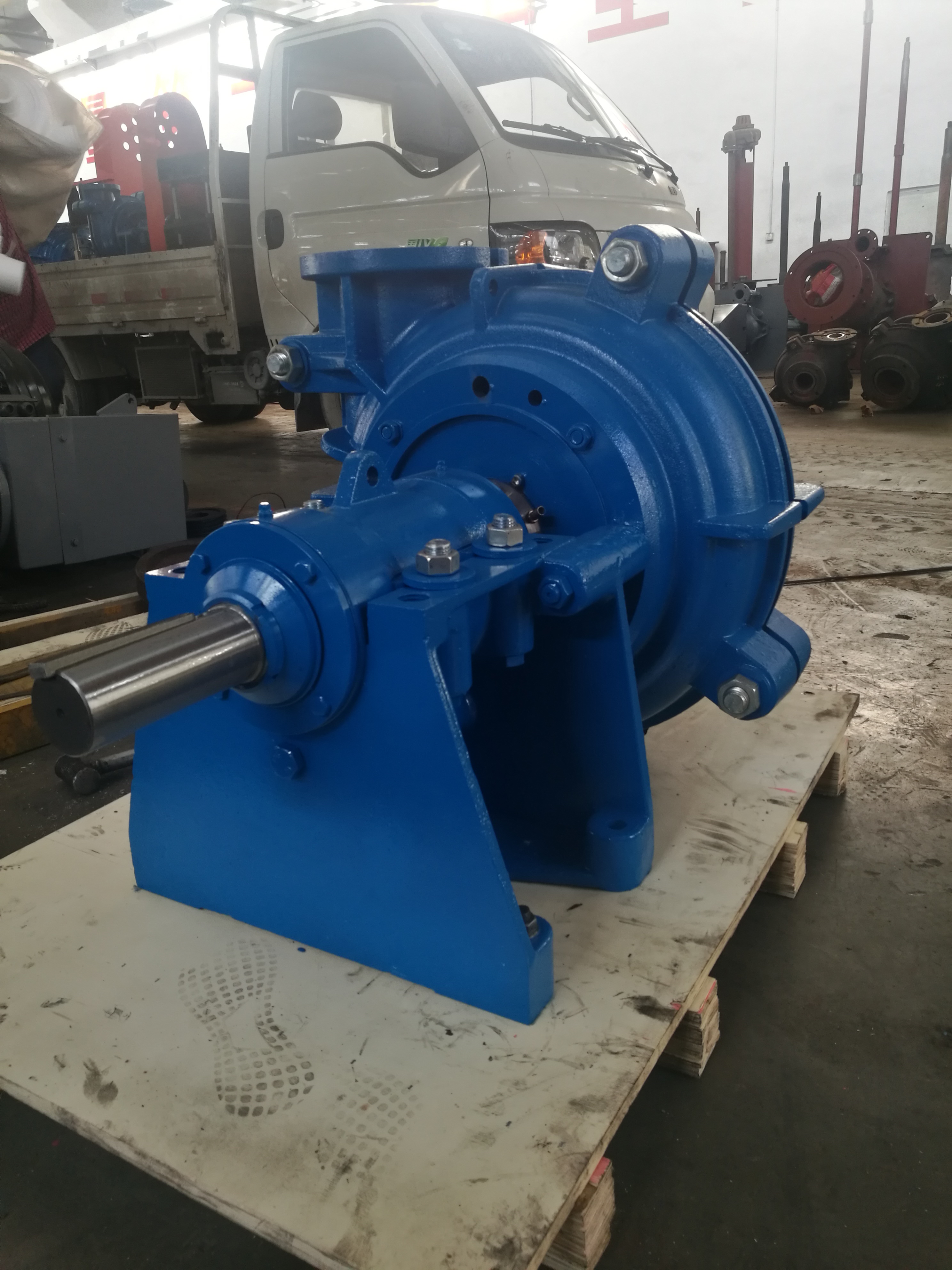

Mechanical Seal 6 / 4 D - Metal Slurry Pump with External Flushing Water Sold to Malaysia

Introduction:

1. Shaft Seal: Mechanical Seal

All the mechanical seals are cartridge type, and passed the sealing performance test. Don’t disassemble the seals randomly otherwise the sealing performance will be damaged.

ZGJ type cartridge mechanical seal: clear flushing water is required (the pressure of the flushing water should be less than 0.1MPa, water flow: 0.15l/s), there is an outlet for the flushing water, and the flushing water doesn’t enter pump body. This type of seal is especially used for high temperature (＞85°C) slurry medium where the slurry concentration is not allowed for dilution.

2. Components:

Impeller
The impeller, either elastomer, stainless steel or high-chrome material, is the main rotating component which normally has vanes to impart the centrifugal force to the liquid.
Casing
Split outer casing halves of cast contain the wear liners and provide high operation pressure capabilities. The casing shape is generally of semi-volute or concentric, efficiencies of which are less than that of the volute type.
Shaft and Bearing Assembly
A large diameter shaft with a short overhang minimizes deflection and vibration. Heavy-duty roller bearing are housed in a removable bearing cartridge.
Shaft sleeve
A hardened, heavy-duty corrosion-resistant sleeve with O-ring seals at both ends protects the shaft. A split fit allows the sleeve removed or installed quickly.
Shaft Seal
Expeller drive seal, Packing seal, Mechanical seal.
Drive Type
V-belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.

3. Slurry pumps are made for high wearing and heavy duty applications. Our pumps and replacement parts are used worldwide industries like mining, mineral processing, power generation, aggregate processing, or any type of slurry pumping application. We specialise in handling the toughest and most abrasive applications and have taken this to a new level with the SH (War-man ) series.

4. The primary applications for the SME SH/100E(6/4E-) metal slurry pumps are mill discharge, crusher slurry, sand and aggregate or any coarse solids or other severe, abrasive slurries especially in te copper, gold, iron ore, lead-zinc, coal or phosphate plants.

The most dramatic savings will be in these applications, though savings will also be realized on find solids, like fine sand recovery or kaolin. The key advantage of the SH metal slurry pumps is the 10% to 30% lower power, long even wear life and less pump downtime, which results in lowe cost-per-ton pumped, along with better cyclone separation.

Specifications:

Typical Applications:

Ash Handling

Cyclone Feeds

Pulp and Paper

Abrasive Slurries

Coal Preparation

Mineral Processing

Aggregate Processing

Material: High Chrome Alloy A05

Material Chemical Requirements, Weight%

Construction of SH Slurry Pumps:

Performance Curve:
