65QV Vertical Sump Mud Pump With Agitator in A05 High Chrome Alloy
Materials
1.Introduction of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:
65QV-SP pumps are vertical, centrifugal slurry pumps submerged in
sump to work.They are designed for delivering abrasive,large
particle and high density slurries.These pumps have no need of any
shaft seal and sealing water. They can also be operated normally
for insufficient suction duties.Wet parts of type NP-SP pump are
made of abrasion-resistant metal. All parts of type NP-SP(R) pump
immersed in liquid are lined with rubber outer liner. They are
suited to transport non-edge angle abrasive slurry.
2.Standard of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump
1. Standard pump into the liquid depth is 1.2 meters , the highest
speed is 1150 r/min.
2.When pump into the liquid depth of 0.9 m, the highest speed is
1500 r/min,
3. When pump into the liquid depth of 1.5 m, the highest speed is
1000 r/min,
4. Standard dipping into the liquid depth is 0.9 meters. Allowed
the most high power is15 KW
3. Specifications of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump
| SVR Series Vertical Rubber Sump Pump Specifations & Prices |
| | | |
Pump
Model | S×D
(mm) | Allowable
Max. Power
(kw) | Material | Clear Water Performance | Impeller | Pricing |
| Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | Length
Shaft (mm) | No. of
Vanes | Vane Dia.
(mm) | Weight
(kg) |
| Impeller | m3/h | l/s |
| SVR/40P | 80×40 | 15 | Rubber
(R55) | 19.44-43.2 | 5.4-12 | 4.5-28.5 | 1000-2200 | 40 | 900 | 5 | 195 | 275 |
| SVR/65Q | 120×65 | 30 | 23.4-111 | 6.5-30.8 | 5-29.5 | 700-1500 | 50 | 1200 | 290 | 420 |
| SVR/100R | 175×100 | 75 | 54-289 | 15-80.3 | 5-35 | 500-1200 | 56 | 1500 | 390 | 850 |
| SVR/150S | 240×150 | 110 | 72-504 | 20-140 | 10-35 | 500-1000 | 56 | 1800 | 480 | 1720 |

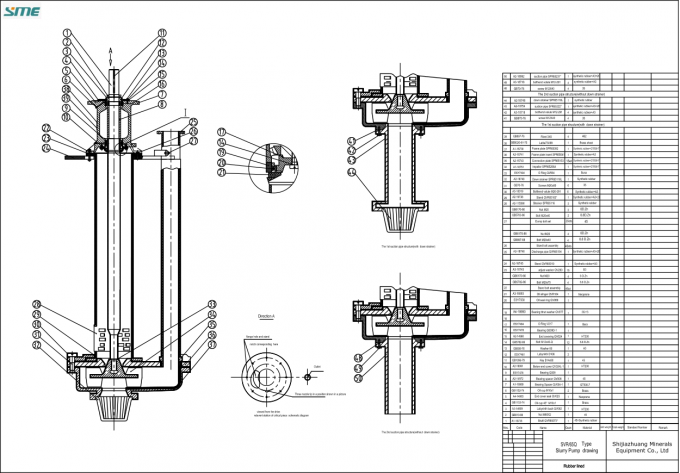

4.Sectional Drawing of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:
5. Projects of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:
6.Finished Products of CNSME® SV/65Q (65QV/SP) Vertical Slurry Pump:
