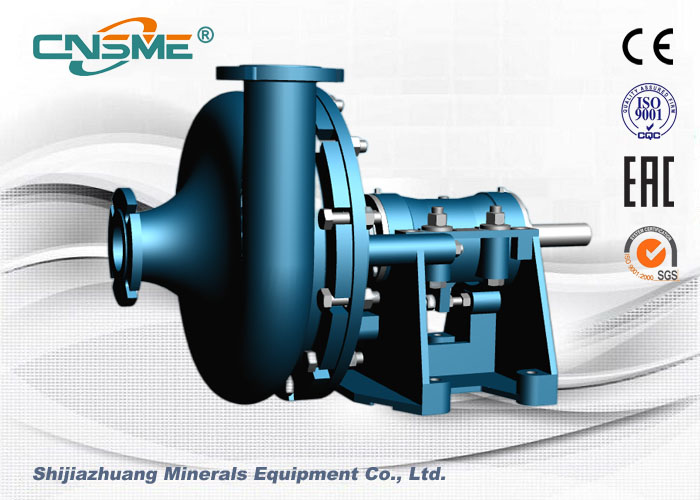

    TC Pump 3-3TC Carbon Transfer Pump Cyklo Type Horizontal Slurry Pump

    Ask Lasest Price
    Brand Name : CNSME
    Model Number : 3-3TC
    Certification : ISO certificate /CE certificate /EAC certificate
    Price : Negotiable
    Payment Terms : T/T,L/C, D/A, D/P,Western Union
    Supply Ability : 30 Sets per Month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    TC Pump 3-3TC Carbon Transfer Pump Cyklo Type Horizontal Slurry Pump

    TC Pump 3-3TC Carbon Transfer Pump Cyklo Type Horizontal Slurry Pump


    1.Discription of CNSME® 3-3TC Carbon Transfer Slurry Pump:

    CNSME® 3-3TC Carbon Transfer Slurry Pump is specially used for continuous use of slurry type applications with large or ruptured sensitive particles. The vortex pump in this range can handle large and very soft particles, especially the place where particles degradation.



    2.Features of CNSME® 3-3TC Carbon Transfer Slurry Pump:


    The useless all -metal wet end is suitable for horizontal and vertical configuration.
    • Use a unique embedded leaf wheel design for dual suction to create vortex movements.
    • The TC pump design transmits energy to the medium that is being pumped. This medium can transfer the solid "soft" to limit the granules to sequence.
    • The pump of the same size and the exit determination of the pump can handle the maximum particle size of the potential block.
    • Equipped hard metal for longer operating life.
    • Large -capacity sleeve design reduces the internal speed and further reduce wear and particle degradation.


    3.Data Sheet of CNSME® 3-3TC Carbon Transfer Slurry Pump:

    Pump DetailsGeneral
    Pump ManufacturerShijiazhuang Minerals Equipment Co., Ltd
    Brand NameCNSME
    Country of OriginChina
    Warranty Period12 Months, Not Inclusive of The Wear Parts
    Pump TypeVertical Carbon Transfer Pump
    Model3-3-TV
    Max Capacitym3/hr120
    Max Headm35
    Max Pump Speedr/min1500
    Max Eff. :%41
    BHPkW4
    Suction Nominal Dia.mm76
    Discharge Nominal Dia.mm76
    Material Construction
    CasingHigh Chrome Alloy A05
    (ASTM A532, Type A, Class III)
    Impeller
    Back Liner
    Discharge PipeK1025
    ColumnK1025
    Side StrainerNatural Rubber
    Lower StrainerGrey Iron
    Impeller
    Impeller TypeClose
    Impeller Dia.mm280
    Number of Vanes8
    Part Passingmm76
    Impeller MaterialHigh Chrome Alloy A05
    HardnessHRC58-62
    Shaft
    Shaft Material45# Steel, Heat Treated (K1045)
    Length (Can be Immerged in Water)1800mm

    4.Structure of CNSME® 3-3TC Carbon Transfer Slurry Pump:

    5.Performance Curve of CNSME® 3-3TC Carbon Transfer Slurry Pump:



    6.Dimensional Drawing of CNSME® 3-3TC Carbon Transfer Slurry Pump:


    7. CNSME® 3-3TC Carbon Transfer Slurry Pump Applications:


    CNSME® 3-3TC pump range is suited to a wide range of slurry applications in many industies.

    Carbon Transfer Duties

    "Soft"Particles

    Sewage and Effluent

    Sugar Beet

    Diamond concentrate

    Low Shear Duties

    Food Industry

    Fish Fry Releasing

    Wash Potato

    General Spillage
