P Severe Duty High Chrome Tailings Minerals Processing Centrifugal Slurry Pumps

1.Product Introduction:

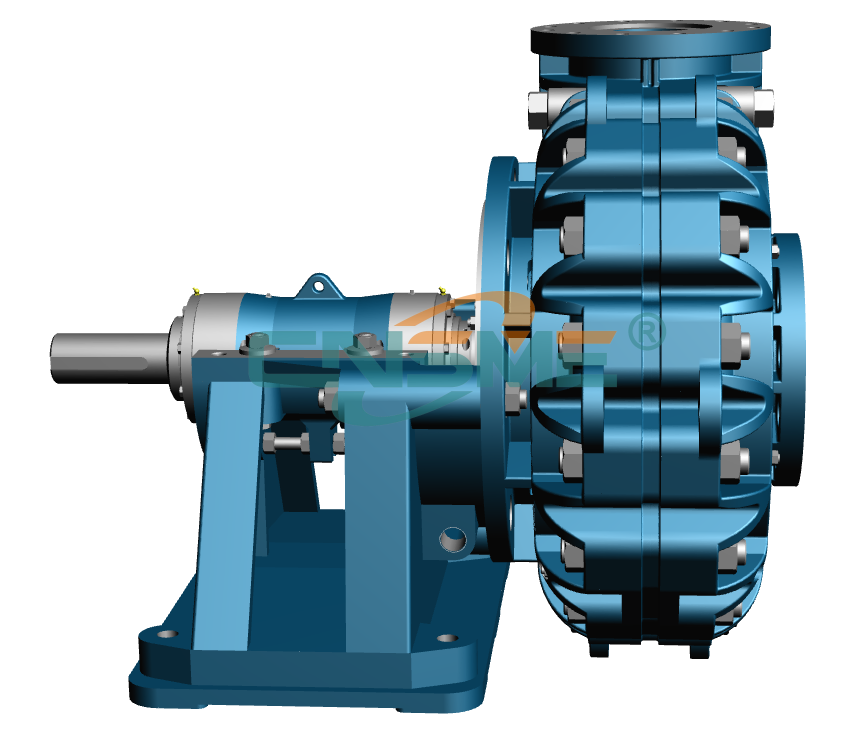

CNSME 10/8ST-P Slurry Pump is robust state of the art slurry pumps that feature oil or grease lubrication bearing assemblies and complete interchangeable with other major brands. The 8 inch centrifugal slurry pump can be supplied in high chrome alloy materials specifically designed for heavy duty slurry applications.

CNSME 10/8ST-P slurry pump wet parts are made of wear-resistant high chromium alloy.
CNSME 10/8ST-P pump bearing assembly use cylindrical structure, adjusting the space between impeller and front liner easily, Can be removed completely when being repaired. Bearing assembly use grease lubrication.
The shaft seal could use the packing seal, expeller seal and mechanical seal for all slurry pump.
The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications at its working site.
There are the drive types, such as V belt drive, gear reducer drive, fluid coupling drive, and frequency conversion drive devices.
Wide performance, good NPSH and high efficiency.

The CNSME 10/8ST-P slurry pump can be installed in multistage series to meet the delivery for long distance.

p Severe Duty Centrifugal Slurry Pumps High Chrome Tailings Minerals Processing

2.Product Parameters:

Speficications
Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-A H	15	M	M	12.6~28.8	6~68	1200~3800	40	2~4	5
1.5/1B-A H	15	RU	RU	10.8~25.2	7~52	1400~3400	35	2~4	3
2/1.5B-A H	15	M	M	32.4~72	6~58	1200~3200	45	3.5~8	5
2/1.5B-A H	15	RU	RU	25.2~54	5.5~41	1000~2600	50	2.5~5	5
3/2C-A H	30	M	M	39.6~86.4	12~64	1300~2700	55	4~6	5
3/2C-A H	30	RU	RU	36~75.6	13~39	1300~2100	60	2~4	5
4/3C-A H	30	M	M	86.4~198	9~52	1000~2200	71	4~6	5
4/3C-A H	30	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
4/3D-A H	60	M	M	97.2~198	9~53	1000~2200	71	4~6	5
4/3D-A H	60	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
6/4D-A H	60	M	M	162~360	12~56	800~1550	65	5~8	5
6/4D-A H	60	RU	RU	144~324	12~45	800~1350	65	3~5	5
6/4E-A H	120	M	M	162~360	12~56	800~1550	65	5~8	5
6/4E-A H	120	RU	RU	144~324	12~45	800~1350	65	3~5	5
8/6E-A H	120	M	M	360~828	10~61	500~1140	72	2~9	5
8/6E-A H	120	RU	RU	324~720	7~49	400~1000	65	5~10	5
8/6R-A H	300	M	M	360~828	10~61	500~1140	72	2~9	5
8/6R-A H	300	RU	RU	324~720	7~49	400~1000	65	5~10	5
10/8-A H	560	M	M	612~1368	11~61	400~850	71	4~10	5
10/8-A H	560	RU	RU	540~1188	12~50	400~750	75	4~12	5
10/8E-M	120	M	M	666~1440	14~60	600~1100	73	4~10	5
10/8E-M	120	RU	RU	540~1188	10~42	500~900	79	5~9	5
12/10-A H	560	M	M	936~1980	7~68	300~800	82	6	5
12/10-A H	560	RU	RU	720~1620	7~45	300~650	80	2.5~7.5	5
14/12-A H	560	M	M	1260~2772	13~63	300~600	77	3~10	5
14/12-A H	560	RU	RU	1152~2520	13~44	300~500	79	3~8	5
16/14-A H	560	M	M	1368~3060	11~63	250~550	79	4~10	5
16/14-A H	1200	M	M	1368~3060	11~63	250~550	79	4~10	5
18/16-A H	1200	M	M	2160~5040	8~66	200~500	80	4.5~9	5
20/18-A H	1200	M	M	2520~5400	13~57	200~400	85	5~10	5

3.Performance Curve:

p Severe Duty Centrifugal Slurry Pumps High Chrome Tailings Minerals Processing

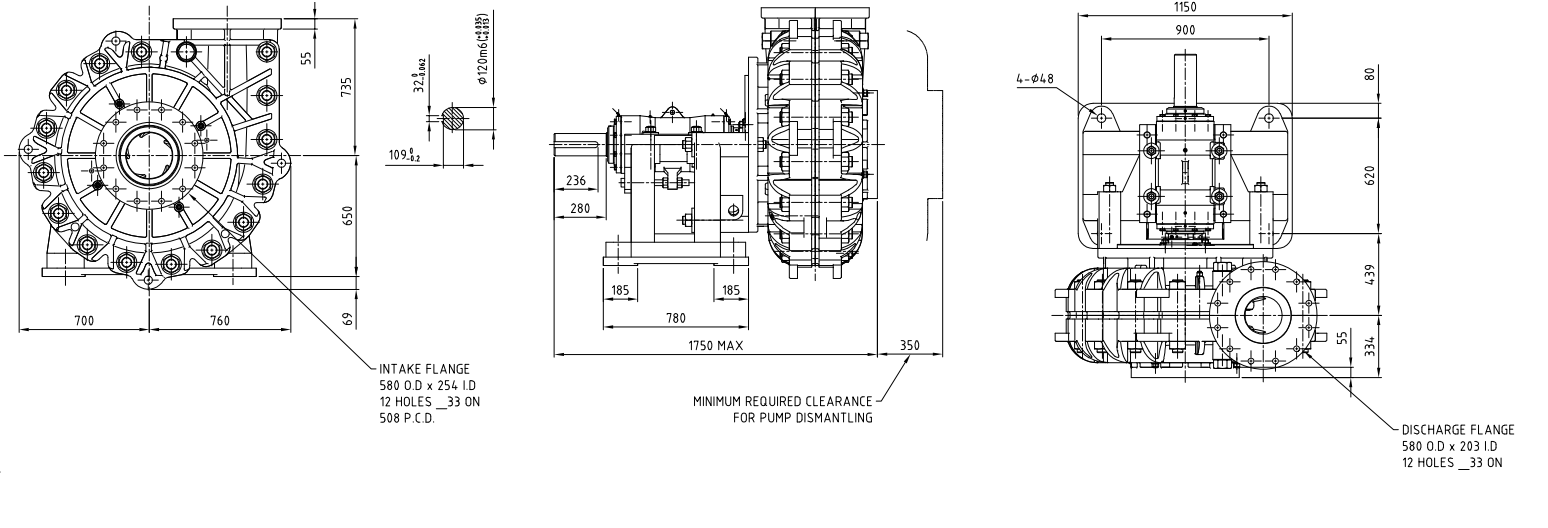

4.Dimension Drawing:

p Severe Duty Centrifugal Slurry Pumps High Chrome Tailings Minerals Processing

4.CNSME pump On-Site Applications:

The Slurry Pumps are widely used to transport corrosive/ abrasive and high concentration slurry in many industries. such as Gold, Silver, Iron ore, Tin, Steel, Coal, Titanium, Copper, Mineral sands, Lead and Zinc. Various other industries include Molybdenum, Electric Utilities, Oil Shale, Water & Sewage Utilities, Building areas, Sand & Gravel, Tobacco and Agriculture (hog, poultry, dairy manure), Mining & Minerals, Grinding and screening, Hydrocyclone separation, Magnetic separation, Flotation, Thickening, Filtration, Leaching, solvent extraction and electrowinning, Pelletizing, Tailings, Metallurgy, Roasting, Annealing and pickling, Coke quenching, Hot strip milling, Neutralisation, Mud handling and waste treatment.

p Severe Duty Centrifugal Slurry Pumps High Chrome Tailings Minerals Processing
