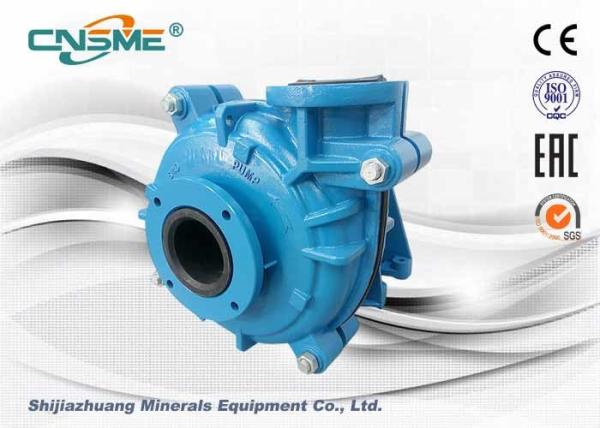

SHR series rubber-lined slurry pump is 100% interchangeable with the big brand R series slurry pump. THR Rubber-lined slurry pumps are more suitable for delivering strong corrosive or abrasive slurries of small particle size without sharp edges.

Features:
• SHR series rubber-lined slurry pump is a Horizontal, Centrifugal, Single stage, Rubber lined slurry pump design.
• SHR Series Rubber Lined Slurry Pumps Cast iron or ductile iron half-shells with external rib contain wear lining and provide high working pressure capability
• Bearing assembly - A large diameter shaft with a short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge-type housing in the frame.
• Pump frame - A rigid, one-piece casting cradles the “cartridge” shaft and bearing assembly. A minimal number of through bolts hold the pump casing to the frame. An easy means of external impeller adjustment is provided in a convenient position below the bearing housing.
• Impeller - Front and rear shrouds have pump-out vanes. This design reduces recirculation and seals contamination, Elastomer impellers are made from rubber-coated high tensile steel, and Cast-in impeller threads require no impeller insert or nuts.

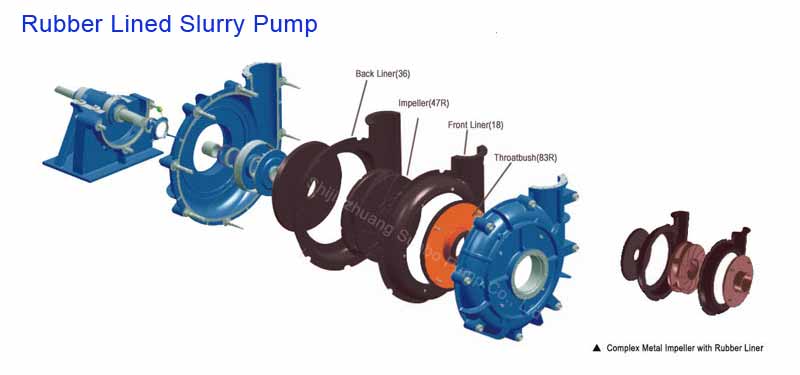

• Liners - Rubber elastomer liners are interchangeable with hard metal. The elastomer liners are bolted, not bonded, to the outer casing. Elastomer seal rings back all liner joints.
• Shaft seal - Packing seal, Centrifugal seal, Mechanical seal.
• Driving type - Flexible coupling, V-belt with pulleys, Gearbox, VFD, SCR control, etc.
• The discharge branch can be oriented to any eight positions at the interval of 45 degrees;
• Our Rubber-Lined Slurry Pumps are easy to install and maintain in field applications.

SHR Rubber Slurry Pumps Performance Parameters:

These slurry pumps are capable of pumping more than just sand. They are perfectly efficient in pumping all manner of slurry, gravel, concrete, mud, slush, and much more.

If you require one of our slurry pumps, then don’t hesitate to contact us.
