8 inch Casing Structure Sand Gravel Pump, Single Stage horizontal
industrial centrifugal pump
1.Introduction:
G series Gravel pump
The g-series gravel pump produced by CNSME pump has a large flow
passage, which is suitable for conveying sand pumps, mud, and
sludge with large solid particles. It is widely used as slag granulation,suction hopper dredging,dredging ,barge
loading,sand reclamation,sugar beet in the industrial sectors of metallurgy, mining, coal, and motor
building materials.
SG Series sand gravel pumps are designed for continuous handling of
the most difficult higher abrasive slurry, containing solids too
large to be pumped by a standard slurry pump.
2. Specifications:
SG200F 10/8F-G Sand Gravel Pump
1) Total Net Weight— 2250kg
2) Wet parts— Impeller (diameter: 864mm),Bowl, Back liner
3) Shaft seal— Packing seal, Expeller seal, Mechanical seal
SG200F (10/8F-G) is a slurry pump with discharge size 8 inch, and
it is almost the best popular pump at SME.
Model | SG-200F (10/8F-G) |
Outlet | 12-inch |
Capacity | 720-2880m3/h |
TDH | 10-70m |
Rated Motor Power | 600Kw |
Speed | 300-700r/min |
NPSH | 2-8m |
SG(SHG) Series Metal Gravel Pump Specifations |
|
Pump
Model | S×D
(inch) | Allowable
Max. Power
(kw) | Material | Clear Water Performance | Impeller | Pricing |
Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | NPSH
(m) | No. of
Vanes | Vane Dia.
(mm) | Weight
(kg) |
Impeller | m3/h | l/s |
SG/100D | 6×4 | 60 | Metal
(A05) | 36-250 | 10-70 | 5-52 | 600-1400 | 58 | 2.5-3.5 | 3 | 378 | 460 |
SG/150E | 8×6 | 120 | 126-576 | 35-160 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 | 1120 |
SG/200F | 10×8 | 260 | 216-936 | 60-260 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 | 2250 |
SG/200S | 10×8 | 560 | 216-936 | 60-260 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 | 2285 |
SHG/200S | 10×8 | 560 | 360-1260 | 100-350 | 20-80 | 500-950 | 72 | 2-5 | 686 | 3188 |
SG/250G | 12×10 | 600 | 360-1440 | 100-400 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 | 4450 |
SHG/250G | 12×10 | 600 | 360-2160 | 100-600 | 20-80 | 350-700 | 73 | 2-8 | 915 | 4638 |
SG/300G | 14×12 | 600 | 432-3168 | 120-880 | 10-64 | 300-700 | 68 | 2-8 | 864 | 5400 |
SG/300T | 14×12 | 1200 | 432-3168 | 120-880 | 10-64 | 300-700 | 68 | 2-8 | 1120 |
|
SG/350G | 16×14 | 600 | 720-3240 | 200-900 | 20-42 | 300-500 | 70 | 3-9 | 2250 | 11000 |
3. Construction of SG Gravel Pumps:
4.Product Advantages
CNSME pump G series gravel pumps are designed for the continuous
handling of the most difficult higher abrasive slurries, containing
solids too large to be pumped by a standard slurypump. They are
suitable for delivering slurries in Mining, explosive sludge in
metal melting, dredging in dredger and course of rivers and other
fields.
1.Construction of this pump is of single casing connected by means
of clamp bands and wide wet passage.
2.The wet-parts are made of Ni-hard and high chromium
abrasion-resistance alloys.
3.The discharge direction of pump can be oriented in any direction
of 360°.
4.This type of pump possesses the advantages of easy installation
and operation, good performance of NPSH and Abrasion-resistance
5. How to choose a suitable pump
How to choose a suitable model:
1. What's kinds of liquid ? Clean water , Sewage,Sand ?
2. What's the flow rate /capacity per hour ?

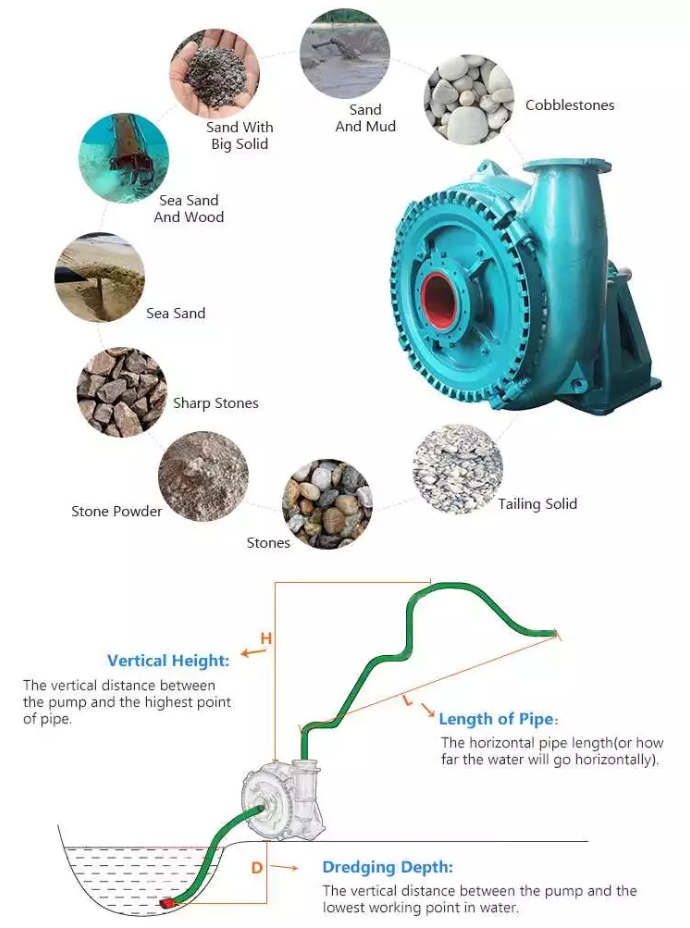

3. What's the lift/ head ? Please check the above picture , we need
the Veritical height (H), The length of pipe ( L ), and the
dredging Depth (D)
4. The max size of the solid particle
