8/6E-G Horizontal Single Pump Casing Structure Centrifugal Sand
Gravel Pump
1.Introduction of CNSME® SG/150E (8/6 E-G) Sand Gravel Pump:
SG Series sand gravel pumps are designed for continuous handling of
the most
difficult higher abrasive slurry, containing solids too large to be
pumped by a standard slurry pump.

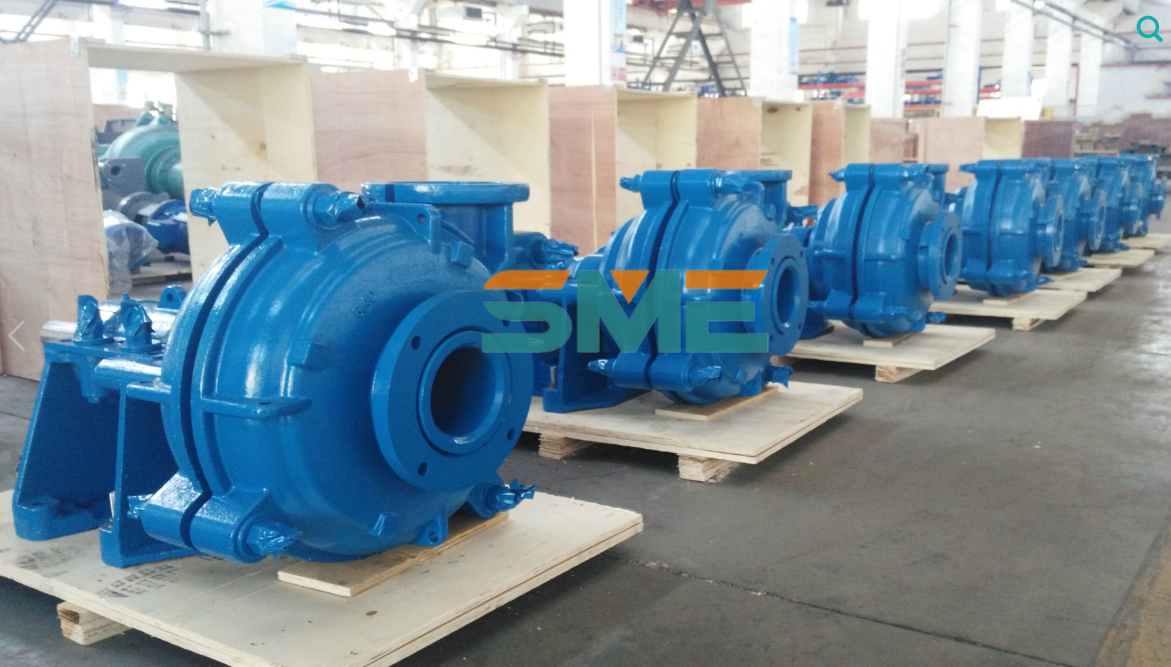

8/6 E-G Sand Gravel Pump
1) Total Net Weight—1120 kg
2) Wet parts— Impeller (diameter: 864mm),Bowl, Back liner
3) Shaft seal— Packing seal, Expeller seal, Mechanical seal
SG-150E(8/6E-G) is a slurry pump with discharge size 6 inch, and it
is almost the best popular pump at SME.
SG-150E(8/6E-G) is mostly sold to our customers from Russia, Holland, Italy and
other Eastern and
Western European countries. SME will always be your reliable
partner for quality slurry pumps and pump spare parts.
These pumps are characterized by long life, efficient operation and
easy maintenance with its low cost.
Pumps are available with either a rubber or a metal lining of
abrasive - and corrosion resistant materials.
Used bearings for heavy duty, with the increased load on them.
Product features and application of the gravel sand pump:
1. the gravel pump is horizontal, single pump casing structure
centrifugal pump.
2. Use special clamp clamping pump body and pump cover, the pump
outlet can be adjusted in the any
direction of 360 degrees, easy to install and use.
3. The bearing components with cylindrical structure, easy to
adjust the gap between the impeller and
the pump body to keep long working life .
4. Bearing with grease lubrication.
5.Gravel pump has three kinds of shaft seal including packing seal,
vice impeller seal, mechanical seal.
6. Wide flow channel , good cavitation performance, high
efficiency, abrasion resistance.
7.Transmission methods are: V-shaped V-belt driven, flexible
coupling driven, gearbox transmission,
hydraulic coupling driven, thyristor speed control speed and so on.
8.Over-flow components Material: nickel-containing high-chromium
wear-resistant alloy.
9.Using variety speed and variants, making the pump running in the
best conditions .
10. Long working life and high operating efficiency can meet a
variety of bad working conditions .
2. Specifications of CNSME® SG/150E (8/6 E-G) Sand Gravel Pump:
| Model | SG-150G (8/6E-G) |
| Outlet | 6-inch |
| Capacity | 126-576m3/h |
| TDH | 6-45m |
| Rated Motor Power | 120Kw |
| Speed | 800-1400r/min |
| NPSH | 3-4.5m |
| SG(SHG) Series Metal Gravel Pump Specifations |
|
Pump
Model | S×D
(inch) | Allowable
Max. Power
(kw) | Material | Clear Water Performance | Impeller | Pricing |
| Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | NPSH
(m) | No. of
Vanes | Vane Dia.
(mm) | Weight
(kg) |
| Impeller | m3/h | l/s |
| SG/100D | 6×4 | 60 | Metal
(A05) | 36-250 | 10-70 | 5-52 | 600-1400 | 58 | 2.5-3.5 | 3 | 378 | 460 |
| SG/150E | 8×6 | 120 | 126-576 | 35-160 | 6-45 | 800-1400 | 60 | 3-4.5 | 391 | 1120 |
| SG/200F | 10×8 | 260 | 216-936 | 60-260 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 | 2250 |
| SG/200S | 10×8 | 560 | 216-936 | 60-260 | 8-52 | 500-1000 | 65 | 3-7.5 | 533 | 2285 |
| SHG/200S | 10×8 | 560 | 360-1260 | 100-350 | 20-80 | 500-950 | 72 | 2-5 | 686 | 3188 |
| SG/250G | 12×10 | 600 | 360-1440 | 100-400 | 10-60 | 400-850 | 65 | 1.5-4.5 | 667 | 4450 |
| SHG/250G | 12×10 | 600 | 360-2160 | 100-600 | 20-80 | 350-700 | 73 | 2-8 | 915 | 4638 |
| SG/300G | 14×12 | 600 | 432-3168 | 120-880 | 10-64 | 300-700 | 68 | 2-8 | 864 | 5400 |
| SG/300T | 14×12 | 1200 | 432-3168 | 120-880 | 10-64 | 300-700 | 68 | 2-8 | 1120 | |
| SG/350G | 16×14 | 600 | 720-3240 | 200-900 | 20-42 | 300-500 | 70 | 3-9 | 2250 | 11000 |
3. Construction of CNSME® SG/150E (8/6 E-G) Sand Gravel Pump:
4. Performance Curve of CNSME® SG/150E (8/6 E-G) Sand Gravel Pump:
5. Typical Applications of CNSME® SG/150E (8/6 E-G) Sand Gravel Pump:
Sand and Gravel
Sand Excavation
Hydraulic Mining
Cyclone Feeds
Slag Granulation
Tunnelling
Brine Mixture
Sludge and Solids
Sand and Aggregate
Mining Industries
6. Packaging&Delivery of our CNSME® pumps:
