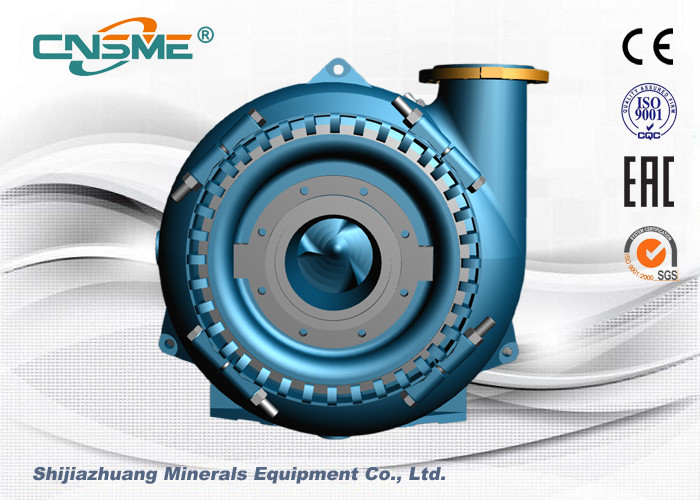

    3 Inch Metal Lined Centrifugal Sludge Pump Horizontal Type

    Ask Lasest Price
    Brand Name : CNSME
    Model Number : SH/75C(4/3C-)
    Certification : ISO/CE/EAC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000 Sets per Month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

    3 Inch Metal Lined Centrifugal Sludge Pump Horizontal Type

    3 Inch Metal Lined Slurry Pump Centrifugal Horizontal Type Heavy Duty Industrial Sludge Pump


    Introduction:

    Shijiazhuang Minerals Equipment Co., Ltd is a professional manufacturer of slurry pumps, we produce horizontal slurry pumps, vertical slurry pumps, submersible slurry pumps, etc.

    Shijiazhuang Minerals Equipment Co., Ltd has its own casting workshop, machines workshop, and assemble workshop, and with many years of experience, we also design special pumps and spare parts according to customers' requirements, if you have special demand, please feel free to contact us.

    Our SH horizontal slurry pump is widely used in tailing mining, SH Slurry Pump for Tailing Mill, tailing disposal SH slurry pump, and tailing treatment SH slurry pump.

    Suction diameter of our SH slurry pump for tailing mill:1inch(25mm) to 18inch(450mm).

    The flow rate of our SH slurry pump for the tailing mill:10-6000m³/H

    The head of our SH slurry pump for tailing treatment:3-100m


    Application of SH slurry pump, SH mining Centrifugal pump

    SH slurry pump is suitable for processing the high abrasion slurry or the material containing solid particles.

    Metal smelting plant: convey slurry

    Sand plant: transporting and conveying sand and gravel, feeding sand and water all types of classification and dewatering plants, etc.



    Specifications:

    Model

    SH/75C

    Outlet

    3-inch

    Capacity

    60~250m3/h

    TDH

    9~80m

    Rated Motor Power

    30Kw

    Speed

    1000~2750/min

    Max. Eff.

    71%

    NPSH

    4~6m

    Wet-end Parts Material

    A05, A07, A33, A49, A51, A61, R08, R26, , U01 U38 etc


    Type

    Size

    Frame

    Impeller:D3147A05

    Shaft Seal Type

    Frame Rating(KW)

    Normal Max Speed(r/min)

    Passage Size(mm)

    SH

    75

    C

    5 Closed Metal Vanes, Diameter: 245mm

    Gland Packing, Expeller, Mechanical Seal

    30

    2750

    36




    Material: High Chrome Alloy A05

    Material Chemical Requirements, Weight%


    Description

    Material Name

    C

    Mn

    Si

    Ni

    Cr

    Mo

    Cu

    P

    V

    S

    Description

    Hardness

    A05

    Ultrachrome

    2.92

    0.98

    0.54

    0.8

    27

    ≤0.8

    ...

    0.062

    ...

    0.051

    27% Cr Erosion Resistant White Iron

    58-62HRC




    Performance Curve:

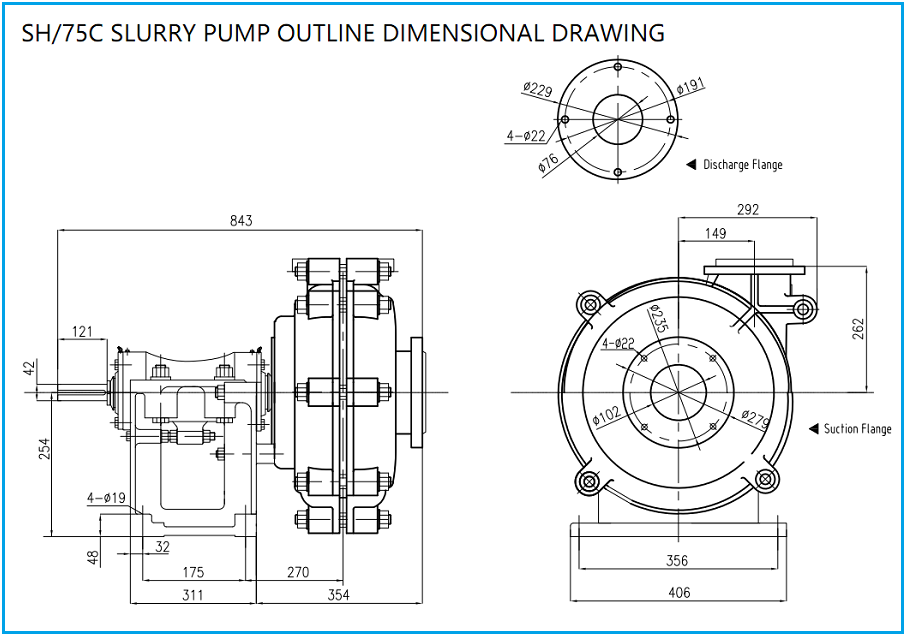

    Outline Dimensional Drawing:

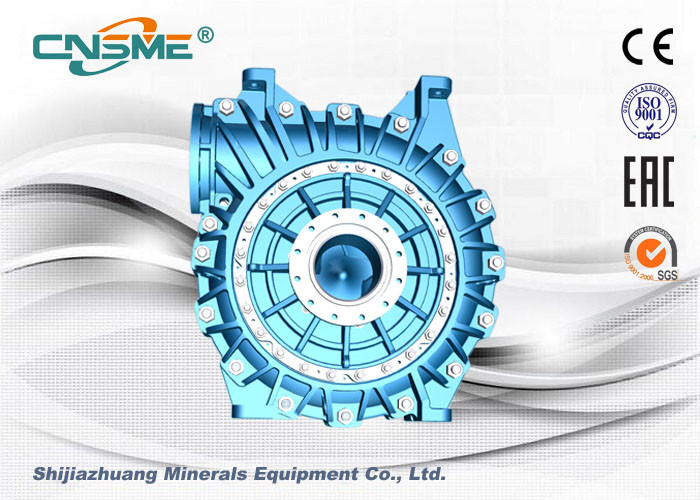

    Similar Products(Replacement of Warman Centrifugal Slurry Pumps):

    3 Inch Metal Lined Centrifugal Sludge Pump Horizontal Type3 Inch Metal Lined Centrifugal Sludge Pump Horizontal Type
