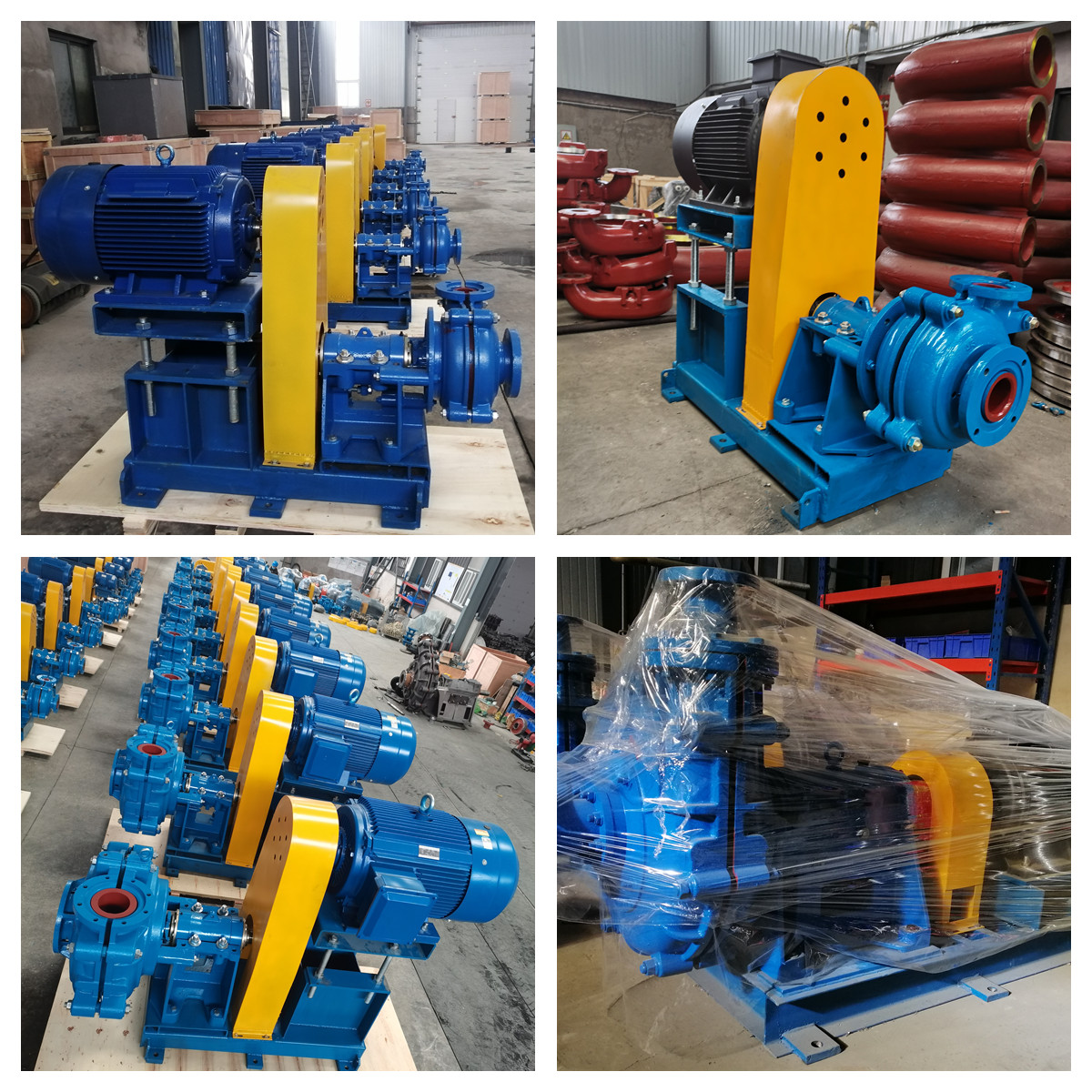

4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type

Shijiazhuang Minerals Equipment Co. Ltd
Contact Now
    Buy cheap 4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type from wholesalers

    Buy cheap 4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type from wholesalers
    • Buy cheap 4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type from wholesalers
    • Buy cheap 4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type from wholesalers
    • Buy cheap 4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type from wholesalers

    4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type

    Ask Lasest Price
    Brand Name : CNSME
    Model Number : SHR/100D
    Certification : ISO/CE/EAC
    Price : Negotiable
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000 Sets per Month
    Delivery Time : 10 Working Days
    • Product Details
    • Company Profile

    4 Inch Polyurethane Lined Heavy Duty Slurry Pump Centrifugal Horizontal Type

    4 Inch Polyurethane Lined Slurry Pump Heavy Duty Centrifugal Horizontal Type with Hydro Seal


    Introduction:

    Slurry pumps are designed and engineered for the most rugged and demanding installations. For years, our slurry pumps have exceeded operating expectations, and provide hydraulic fracturing companies unprecedented uptime, reliability, and efficiency.

    SH is a very popular series among slurry pump selections. It is a horizontal pump that is used on the surface and connected with discharge pipes to move sludge, slag, and silt from one tank to another. They are suitable to handle very abrasive and erosive slurries.


    1) Simple structure in liner type, easy in installation and maintenance.

    2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.

    3) High-pressure double crank to control the die opening and closing.

    4) Running in a high automatization and intellectualization, no pollution.

    5) Apply a linker to connect with the air conveyor, which can directly inline with the filling machine.


    Specifications:


    Model

    SHR/100D

    Outlet

    4-inch

    Capacity

    100-300m3/h

    TDH

    13-40m

    Rated Motor Power

    60Kw

    Speed

    800-1350r/min

    Max. Eff.

    72%

    NPSH

    2-6m


    Type

    Size

    Frame

    Impeller:E4147

    Shaft Seal Type

    Frame Rating(KW)

    Normal Max Speed(r/min)

    Passage Size(mm)

    SHR

    100

    D

    5 Closed Polymer Vanes, Diameter: 365mm

    Gland Packing, Expeller, Mechanical Seal

    60

    1350

    33


    Typical Applications:


    Ash Handling

    Cyclone Feeds

    Pulp and Paper

    Abrasive Slurries

    Coal Preparation

    Mineral Processing

    Aggregate Processing


    Performance Curve:



    OUTLINE DIMENSIONS:



    MAIN WEAR PARTS:


    IMPELLERPOLYURETHANE
    THROATBUSHPOLYURETHANE
    VOLUTE LINERPOLYURETHANE
    FRAME PLATE LINER INSERTPOLYURETHANE

    SIMILAR PRODUCTS:



    PUMP STRUCTURE:
