CNSME® centrifugal Slurry Pump is designed for heavy output, abrasive and
corrosive, rolling mill discharge and efficient processes.
Our pump is used in hard rock, dredging, pulp and paper, as well as
industrial business around the world.
We have exported the pumps to more than 20 countries to the
world.Overseas service is available for customers.
We will use our quality and service to attract you and win you-an
honorable friend and partner.
About Centrifugal Slurry Pump
The centrifuge pump is used in many industrial applications such as
quarry, mining, recycling and large manufacturing. They are
designed for continuous pumping abrasive fluids, and wearing
components can be simply replaced without replacing the entire
pump.
Belt Protection Guard
The rear of the pump is a belt shroud, which protects the operator
from the pulley and belt. It is easy to remove the perforated light
leather cover such as this at need, which makes the pump faster and
more maintenance.
Base
The pump is on a fixed base, but the slurry pump can also occupy
the sliding base. The advantage of the sliding base is that it
allows for easier and safer pumps during maintenance to open and
close, which in turn reduces any user's downtime.
Shaft
The shaft is powered by the motor so that the impeller is rapidly
rotating.
Bearing assembly
In view of the force placed on the impeller and the shaft, the role
of the bearing assembly is to keep the shaft and impeller stability
and proper alignment. Therefore, the slurry pump is much more and
more robust bearing assembly than the water pump. The cassette can
be adjusted backwards and then forward to change the impeller gap.
Volute process
The volute housing accommodates the volute of the valve. This is a
replaceable spare, rather than wearing a pump, etc., so it is
easier and cheaper. The slurry enters the pump by a straw. The
force of the rotating impeller pushes fluid into the discharge tube
under high pressure.

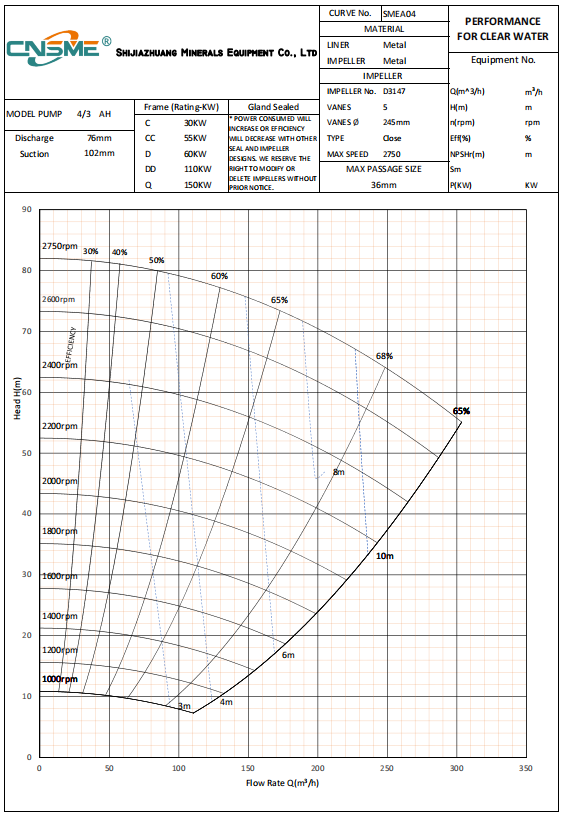

Performance Parameter Data of Slurry Pump:
