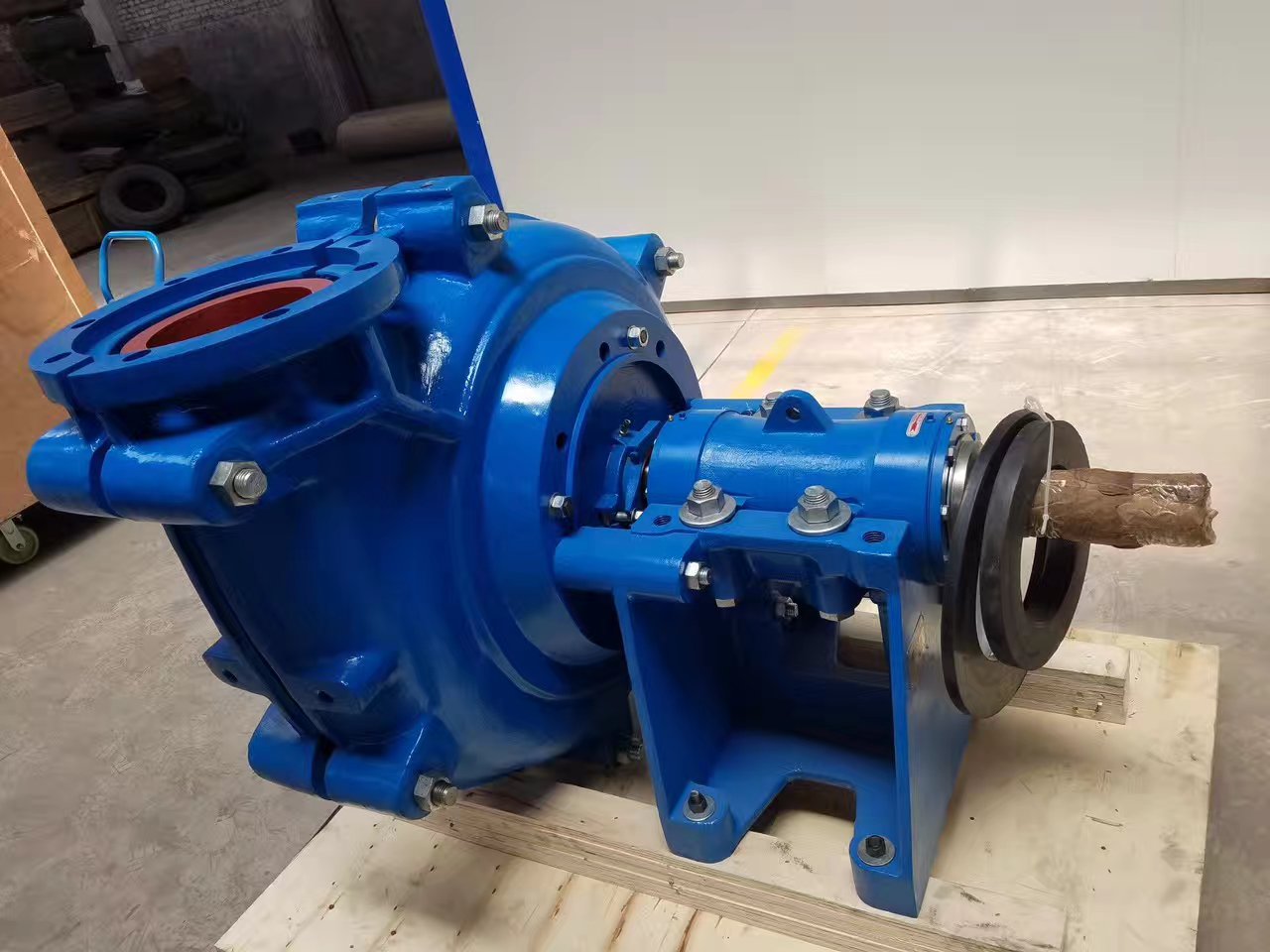

    5 Vans Closed Type Impeller , Expeller Ring Seal Hard Metal Slurry Pump

    Ask Lasest Price
    Brand Name : CNSME
    Model Number : 6/4E-
    Certification : ISO/CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 300000 Sets per Month
    Delivery Time : 7 Working Days
    • Product Details
    • Company Profile

    5 Vans Closed Type Impeller , Expeller Ring Seal Hard Metal Slurry Pump

    5 Vans Closed Type Impeller , Expeller Ring Seal Hard Metal Slurry Pump


    Introduction:


    The seal type of slurry pump SH/100E(6/4E-) can be expeller ring seal, packing seal or mechanical seal and all sorts of special combined seals:


    1. Expeller drive seal: Use pressure seal produces by impeller and expeller in series, packing or lip sealing ring for shut down seal.


    2. Packing seal: The routing sealing systems are suitable for various conditions and can be used in the corrosin or high temperature conditions such as polytetrafluoroethylene packing, graphite packing and etc. It also can be used in strong abrasive condition duty eith shaft ceramic sleeve of sprey weld.


    3. Mechanical Seal: World-advanced sealing technique without sealing leakage, integrating construction installation & replacement, various construction suit for all kinds of conditions. High hardness creamic and alloy are adopted for material of friction parts. Design & macting of mechanical seal & sealing box is suitable for fluid state. It possesses high abrasive resistance & shakeproof to guarantee that sealing seffect can be satisfied by customers in various conditions.


    Specifications:


    ModelSH-100E
    Oulet4-inch
    Capacity162-360m3/h
    TDH12-56m
    Rated Motor Power120Kw
    Speed800-1550r/min
    NPSH5-8m

    TypeSizeFrameImpeller:E4147A05Shaft Seal TypeFrame Rating(kw)Normal Max Speed(r/min)Max Passage Size(mm)
    SH100E5 Closed Type Metal Vans, Diameter:365mmGland Packing, Expeller, Mechanical Seal120160044

    Typical Applications:


    Ash Handling

    Cyclone Feeds

    Pulp and Paper

    Abrasive Slurries

    Coal Preparation

    Mineral Processing

    Aggregate Processing



    Material: High Chrome Alloy A05


    Material Chemical Requirements, Weight%

    DescriptionMaterial NameCMnSiNiCrMoCuPVSDescriptionHardness
    A05Ultrachrome2.920.980.540.827≤0.8...0.062...0.05127% Cr Erosion Resistant White Iron58-62HRC

    Construction of SH Slurry Pumps:


    Outline Dimension:
