Heavy Duty Slurry Pump High Solids Rubber Lined Centrifugal Pump
1.Introduction:
SHR/50C rubber lined slurry pump can be replaced for Warman 3/2
slurry pump:
slurry pump 2 inch is the horizontal, single stage and double casing pump. The slurry
pump 2 inch is innovative in the design of structure and hydraulic
performance. Flow channel parts are made of abrasion resistant high
chromium alloy. The slurry pump 2 inch has the characteristics of
high efficiency, energy saving, wear-resisting and reliable running
etc.
The slurry pump 2 inch can convey gravel, slurry or sand with the
solid and liquid density up to 60%. The slurry pump 2 inch is
suitable to convey strong erosion slurry, slag or grout contained
solid particles. The slurry pump assembly is widely used in pumping
mining tailings, extracting sand, land reclamation, electric
coal-ash etc.
1,replaceable wear-resistant metal liners;
2,Single-stage, single-suction, cantilevered, horizontal,centrifugal;
3,Grease lubrication;
4,High efficiency, wear resistant, stable performance,
interchangeability of parts;
5,wear resistant layer and bearing layer can be separated;
6,The discharge outlet of the centrifugal slurry pump can be adjusted
with rotation
interval of 45 degrees,the pumps can be operated in series and driven with belt;
7,The shaft seal can adopt expeller type shaft sealing, gland packing
assembly and mechanical sealing.
2.Specifications:
| Model | 3/2C-R(SHR/50C) |
| Outlet | 2 - inch |
| Capacity | 39-86m3/h |
| TDH | 13-46m |
| Rated Motor Power | 30Kw |
| Speed | 1300-2300r/min |
| NPSH | 2-4 meters |
| Slurry Pump SH Series Metal Slurry Pump Specifications |
|
Pump
Model | S×D
(inch) | Allowable
Max. Power (kw) | Material | Clear Water Performance | Impeller | Pricing |
| Capacity Q | Head
H(m) | Speed
n(r/min) | Max.Eff.
η% | NPSH
(m) | No. of
Vanes | Vane Dia.
(mm) | Weight
(kg) |
| Impeller | m3/h | l/s |
| SH/25B(R) | 1.5×1 | 15 | Metal
(A05) | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 | 91 |
| SH/40B(R) | 2×1.5 | 15 | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 184 | 118 |
| SH/50C(R) | 3×2 | 30 | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 214 | 191 |
| SH/75C(R) | 4×3 | 30 | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 245 | 263 |
| SH/75D(R) | 4×3 | 60 | 245 | 363 |
| SH/100D(R) | 6×4 | 60 | 162-360 | 45-100 | 12-56 | 800-1550 | 65 | 5-8 | 365 | 626 |
| SH/100E(R) | 6×4 | 120 | 365 | 728 |
| SH/150E(R) | 8×6 | 120 | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 510 | 1473 |
| SH/150F(R) | 8×6 | 260 | 510 | 1496 |
| SH/150R(R) | 8×6 | 300 | 510 | 1655 |
| SH/200F(R) | 10×8 | 260 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3193 |
| SH/200ST(R) | 10×8 | 560 | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 686 | 3750 |
| SH/250F(R) | 12×10 | 260 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 3760 |
| SH/250ST(R) | 12×10 | 560 | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 762 | 4318 |
| SH/300ST(R) | 14×12 | 560 | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 965 | 6409 |
| SH/350TU(R) | 16×14 | 1200 | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 |
1067 |
10000 |

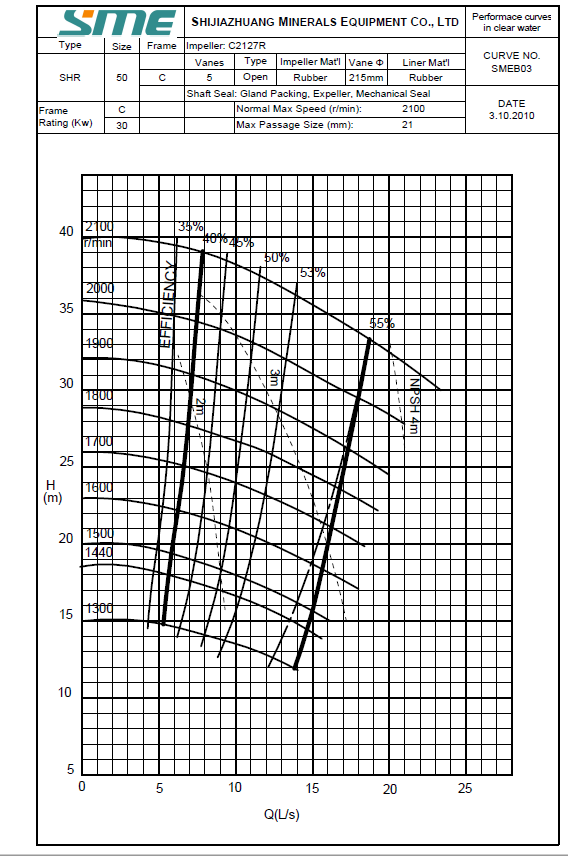

3.Performance curve
4. 3/2 Slurry pumps Application:
slurry pump assembly is suitable for mud or sludge conveying, river
dredging, sewage treatment, sand extraction, land reclamation,
coastal embankment, dock construction, and also can be used in
power plant, metallurgical transportation, tailings and other
dredging industries.
