10/8ST 8 Inch Centrifugal Slurry Pump Suction Mud Pump With High Chrome Minerals

10/8ST 8 Inch Centrifugal Slurry Pump Suction Mud Pump With High Chrome Minerals

1. Production Introduction of CNSME® SH/200ST (10/8ST-) Slurry Pump:

Type A H(R)/HH/M(R) slurry pumps are cantilevered,horizontal and centrifugal slurry pumps.
Mud pumps, impurity pumps, dredge pumps and desilting pumps all belong to category of slurry pumps.

Type A H(R)/HH are heavy duty slurry pumps used to transport the strong abrasive high density or low density high head slurry. Under the allowable pressure, they can be installed in multistage series.
Type M(R) slurry pumps are middle duty slurry pumps used to transport the fine particle size and middle density slurry.

2. Structure of CNSME® SH/200ST (10/8ST-) Slurry Pump:

10/8ST 8 Inch Centrifugal Slurry Pump Suction Mud Pump With High Chrome Minerals

Performance characteristics:

① Replaceable wear-resistant metal lining, impeller, sheath, guard plate and over current parts.
 ② Long service life, reliable performance and easy operation.
 ③ The frame plates liner and impeller for type A H, M pumps have replaceable wear-resistant metal liners or rubber liners,The frame plate liner and impeller for HH pump are adoptable of wear-resistant metal only.
 ④ The shaft seals Type: Gland seal , Expeller Seal , Mechanical Seal.
 ⑤ Discharge branch can be positioned at intervals of 45 degrees

3. Specification of CNSME® SH/200ST (10/8ST-) Slurry Pump:

Performance Parameter
Model	Max. Power (kw)	Materials		Clear Water Performance					Impeller Vane No.
Model	Max. Power (kw)	Liner	Impeller	Capacity Q (m3/h)	Head H (m)	Speed n (rpm)	Eff. η (%)	NPSH (m)	Impeller Vane No.
1.5/1B-A H	15	M	M	12.6~28.8	6~68	1200~3800	40	2~4	5
1.5/1B-A H	15	RU	RU	10.8~25.2	7~52	1400~3400	35	2~4	3
2/1.5B-A H	15	M	M	32.4~72	6~58	1200~3200	45	3.5~8	5
2/1.5B-A H	15	RU	RU	25.2~54	5.5~41	1000~2600	50	2.5~5	5
3/2C-A H	30	M	M	39.6~86.4	12~64	1300~2700	55	4~6	5
3/2C-A H	30	RU	RU	36~75.6	13~39	1300~2100	60	2~4	5
4/3C-A H	30	M	M	86.4~198	9~52	1000~2200	71	4~6	5
4/3C-A H	30	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
4/3D-A H	60	M	M	97.2~198	9~53	1000~2200	71	4~6	5
4/3D-A H	60	RU	RU	79.2~180	5~34.5	800~1800	59	3~5	5
6/4D-A H	60	M	M	162~360	12~56	800~1550	65	5~8	5
6/4D-A H	60	RU	RU	144~324	12~45	800~1350	65	3~5	5
6/4E-A H	120	M	M	162~360	12~56	800~1550	65	5~8	5
6/4E-A H	120	RU	RU	144~324	12~45	800~1350	65	3~5	5
8/6E-A H	120	M	M	360~828	10~61	500~1140	72	2~9	5
8/6E-A H	120	RU	RU	324~720	7~49	400~1000	65	5~10	5
8/6R-A H	300	M	M	360~828	10~61	500~1140	72	2~9	5
8/6R-A H	300	RU	RU	324~720	7~49	400~1000	65	5~10	5
10/8-A H	560	M	M	612~1368	11~61	400~850	71	4~10	5
10/8-A H	560	RU	RU	540~1188	12~50	400~750	75	4~12	5
10/8E-M	120	M	M	666~1440	14~60	600~1100	73	4~10	5
10/8E-M	120	RU	RU	540~1188	10~42	500~900	79	5~9	5
12/10-A H	560	M	M	936~1980	7~68	300~800	82	6	5
12/10-A H	560	RU	RU	720~1620	7~45	300~650	80	2.5~7.5	5
14/12-A H	560	M	M	1260~2772	13~63	300~600	77	3~10	5
14/12-A H	560	RU	RU	1152~2520	13~44	300~500	79	3~8	5
16/14-A H	560	M	M	1368~3060	11~63	250~550	79	4~10	5
16/14-A H	1200	M	M	1368~3060	11~63	250~550	79	4~10	5
18/16-A H	1200	M	M	2160~5040	8~66	200~500	80	4.5~9	5
20/18-A H	1200	M	M	2520~5400	13~57	200~400	85	5~10	5

4. Performance Curve of CNSME® SH/200ST (10/8ST-) Slurry Pump:

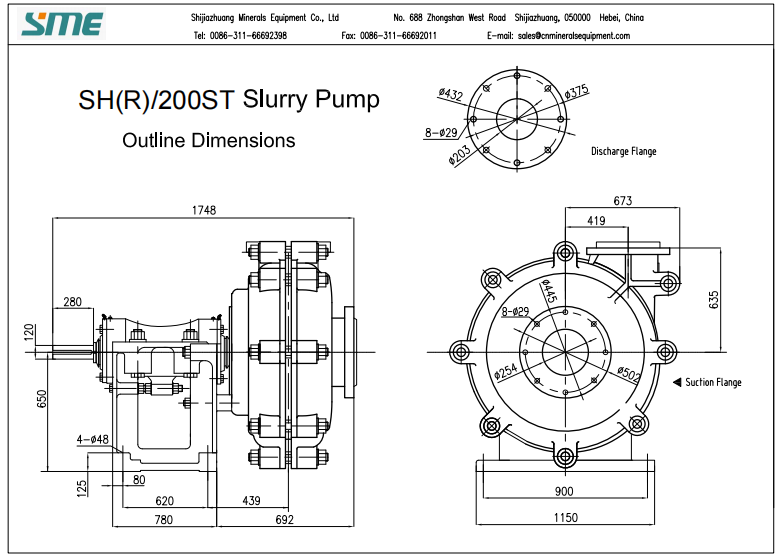

5.Dimensional Drawing of CNSME® SH/200ST (10/8ST-) Slurry Pump:

6.On - site Application of CNSME® SH/200ST (10/8ST-) Slurry Pump:

Slurry pumps SH/200ST (10/8ST-) are widely used in industry of mining, electrical power, metallurgy, coal, environmental protection, etc for
transportation of abrasive solid slurry.

10/8ST 8 Inch Centrifugal Slurry Pump Suction Mud Pump With High Chrome Minerals
